Equipped With Blind Spot Radar 1080P AHD IP68 Waterproof Reversing Camera
Szczegóły Produktu:
| Miejsce pochodzenia: | Guangdong, Chiny |
| Nazwa handlowa: | Vanwin Tracking |
| Orzecznictwo: | CE/FCC/ROHS |
| Numer modelu: | VW-206BSD |
Zapłata:
| Minimalne zamówienie: | 5pcs |
|---|---|
| Cena: | negotiated |
| Szczegóły pakowania: | Domyślnie neutralny pakiet pola kartonowego. Dostosuj pakiet jest dostępny, jeśli zamówienie osiągną |
| Czas dostawy: | 2-3 dni dla próbek, 15-30 dni dla dużych zamówień |
| Zasady płatności: | T/t lub Zachodnia Unia lub PayPal |
| Możliwość Supply: | 5 0000 szt. Miesięcznie |
|
Szczegóły informacji |
|||
| Aplikacja: | Ciężarówka Samochód Autobus Ciężarówka | Nazwa produktu: | Kamera monitorująca martwe pole pojazdu |
|---|---|---|---|
| Czujnik obrazu: | AHD | Woltaż: | DC 12V |
| Rozdzielczość aparatu: | 1080p | Wodoodporny: | IP68 |
| Nocna wizja: | 8-15 m | System telewizyjny: | PAL NTSC Opcjonalnie |
| Temperatura robocza: | 20 ~+70 | BSD: | Wbudowany moduł BSD |
| Typ: | Czujnik parkowania, kamera boczna, kamera cofania | Funkcjonować: | Wodoodporny, WIDOK NOCNY, G-Sensor, ADAS, Interakcja głosowa, Linia parkowania, |
opis produktu

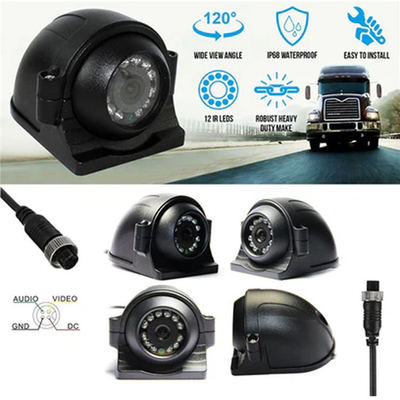

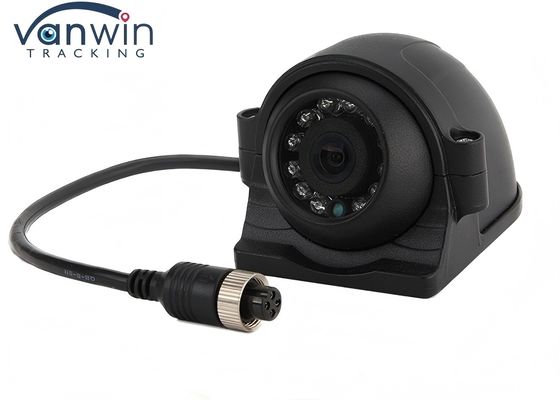

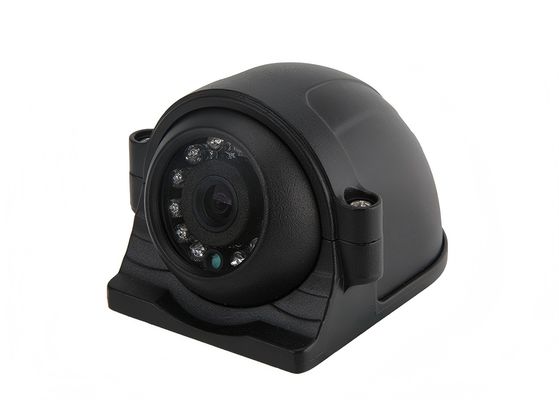

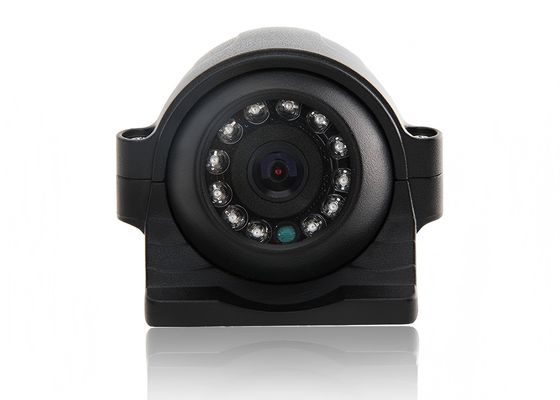

Equipped With Blind Spot Radar 1080P AHD IP68 Waterproof Reversing Camera

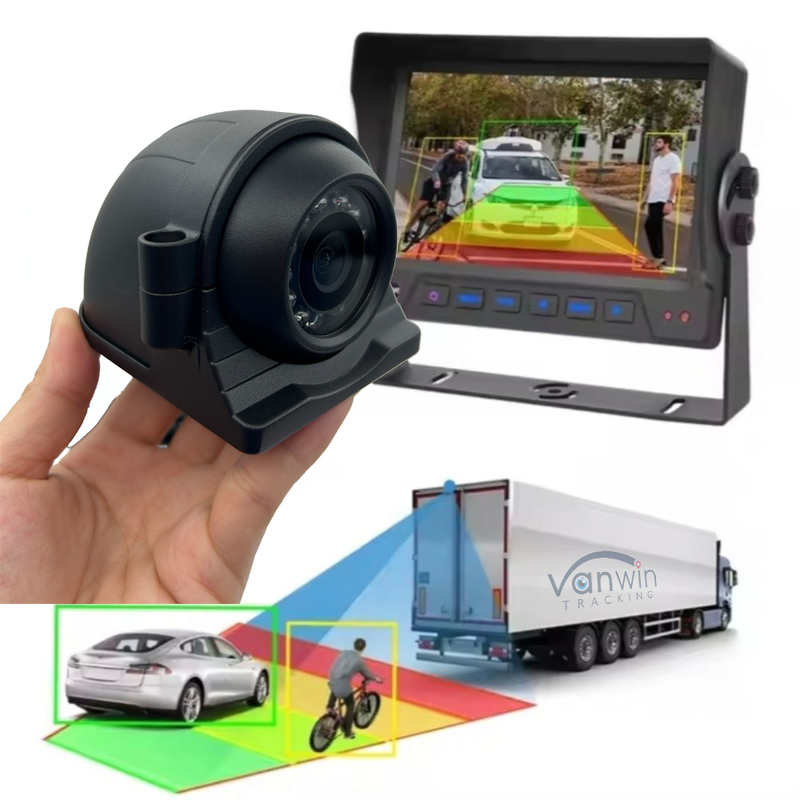

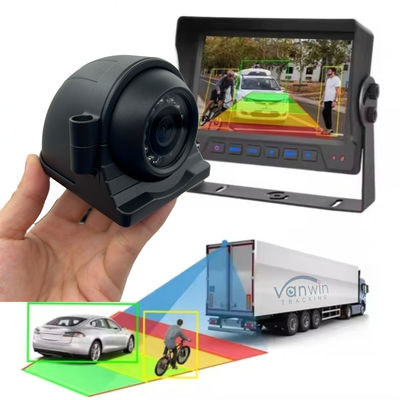

AHD BSD Fuction Side View Camera System:
●1080P 2.0mp AHD Rear View Camera
● Waterproof IP68
● Night Vision
● PAL/NTSC for optional
● Can connect into all kinds of AHD MDVR System
●4Pin Aviaction connector or BNC Connector for optional
●Mini Size Model
●Strong Hard Shell
●Camera for side view
● Night Vision
● PAL/NTSC for optional
● Can connect into all kinds of AHD MDVR System
●4Pin Aviaction connector or BNC Connector for optional
●Mini Size Model
●Strong Hard Shell
●Camera for side view
Product Paramenters:
Product Model | VW-206 |
Lens | 2.8/3.6/6/8mm for option |
Resolution | 1920*1080,2.0MP Megapixels |
Lens Angle | 120 |
Audio | Without Audio |
LED Light | 12 PCS IR LED Lights |
Waterproof Rate | IP68 |
Shell Material | Alluminum Alloy |
Size | 90mm*77mm*63.5mm |
FAQ
Q: What is the maximum storage capacity supported by this product?
A: It supports two TF cards, each with a max capacity of 1TB, ideal for long-term video storage.
Q: Does it support remote management?
A: Yes, it is compatible with CMSV6/7/9 platforms for real-time monitoring and dispatching.
Q: How many camera channels does this product support?
A: It has a built-in 1080P camera and supports up to 3 additional 1080P AHD cameras, providing 4-channel monitoring.
Q: What types of vehicles is this product suitable for?
A: It is suitable for taxis, cars, trucks, and various other vehicle types.
Q: Is it suitable for extreme weather conditions?
A: Yes, the device operates in temperatures ranging from -20℃ to +70℃.
Q: Does the device support AI functions?
A: Yes, optional AI features include ADAS (Advanced Driver Assistance Systems), DSM (Driver State Monitoring), and BSD (Blind Spot Detection).(Contact for more)
Q: Is the installation process complicated?
A: No, the device is compact and lightweight, and can be easily fixed to the vehicle's windshield using a 3M adhesive strip.
Q: Does the product support alarm functions?
A: Yes, it includes a built-in G-Sensor that triggers alarms for acceleration, rollover, and collision events, with real-time
uploads to the platform.
A: It supports two TF cards, each with a max capacity of 1TB, ideal for long-term video storage.
Q: Does it support remote management?
A: Yes, it is compatible with CMSV6/7/9 platforms for real-time monitoring and dispatching.
Q: How many camera channels does this product support?
A: It has a built-in 1080P camera and supports up to 3 additional 1080P AHD cameras, providing 4-channel monitoring.
Q: What types of vehicles is this product suitable for?
A: It is suitable for taxis, cars, trucks, and various other vehicle types.
Q: Is it suitable for extreme weather conditions?
A: Yes, the device operates in temperatures ranging from -20℃ to +70℃.
Q: Does the device support AI functions?
A: Yes, optional AI features include ADAS (Advanced Driver Assistance Systems), DSM (Driver State Monitoring), and BSD (Blind Spot Detection).(Contact for more)
Q: Is the installation process complicated?
A: No, the device is compact and lightweight, and can be easily fixed to the vehicle's windshield using a 3M adhesive strip.
Q: Does the product support alarm functions?
A: Yes, it includes a built-in G-Sensor that triggers alarms for acceleration, rollover, and collision events, with real-time
uploads to the platform.
Q. Why should I buy from you, not from other suppliers?
A: We are a manufacturer of car camera and car rearview monitor systems brand from Shenzhen, China. With more than 15 years of engineering experience. Our products could apply all kinds of vehicle monitors. All of our products have a 100% strictly QC test before delivery. Doing business with us will be a very pleasant experience.
Q.Could you provide OEM&ODM service?
A:Yes,We are focusing on improving video processing technology and video analyze technology,provide the advanced monitor products,technical solution and professional premium service world-wide,offer OEM&ODM service.Alsoour R&D team have rich experience in ODM&OEM
A: We are a manufacturer of car camera and car rearview monitor systems brand from Shenzhen, China. With more than 15 years of engineering experience. Our products could apply all kinds of vehicle monitors. All of our products have a 100% strictly QC test before delivery. Doing business with us will be a very pleasant experience.
Q.Could you provide OEM&ODM service?
A:Yes,We are focusing on improving video processing technology and video analyze technology,provide the advanced monitor products,technical solution and professional premium service world-wide,offer OEM&ODM service.Alsoour R&D team have rich experience in ODM&OEM
