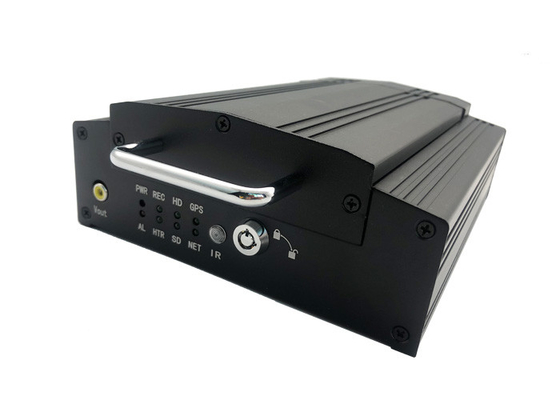

4G GPS WIFI HDD SD Card 8CH Mobile Digital Video Recorders MDVR for Trucks
Szczegóły Produktu:
Miejsce pochodzenia: | Shenzhen, Chiny |
Nazwa handlowa: | Vanwin Tracking |
Orzecznictwo: | CE/FCC/RoHS |
Numer modelu: | VW728HD-GSW |
Zapłata:
Minimalne zamówienie: | 1pc |
---|---|
Cena: | negotiated |
Szczegóły pakowania: | Domyślnie neutralne opakowanie kartonowe. Dostosuj pakiet jest dostępny, jeśli zamówienie osiągnie 3 |
Czas dostawy: | 2-3 dni na próbki, 15-30 dni na duże zamówienia |
Zasady płatności: | T/T lub Western Union lub PayPal |
Możliwość Supply: | 5000 sztuk miesięcznie; |
Szczegóły informacji |
|||
Rodzaj: | mobilny system kamer dvr | Pojemność magazynowa: | 2.5" SATA HDD lub SSD, 1TB / 2TB |
---|---|---|---|
kamery: | Analog / AHD 720P / 960P/1080P | Rozstrzygnięcie: | 8CH pełny 1080P/720P/D1/CIF |
Czujnik oleju: | Wsparcie | Czujnik siedzenia: | Wsparcie |
Hotspot telefoniczny: | Wsparcie | Przycisk paniki: | Wsparcie |
Wejścia alarmowe: | 8-kanałowe wejście sygnału alarmowego włączenia/wyłączenia, 1-kanałowe wyjście sygnału alarmowego wł | Karta pamięci: | Wspiera jeden 2,5" dysk twardy i jedną kartę SD |
Odpowiedni: | Autobus, ciężarówka, taksówka, kabina, benzyna, koparka, floty ciężarówek górniczych | Podstawowa funkcja: | 8 kamer, 3G, 4G, 5G w czasie rzeczywistym, śledzenie GPS, pobranie WiFi. |
Kompresja wideo: | H264/H265 | RS232/RS485: | Wsparcie |
opis produktu
4G GPS WIFI HDD SD Card 8CH Mobile Digital Video Recorders MDVR for Trucks
All our Mobile DVR’s are straightforward to install and are fully secure with a lockable SD card or hard drive.
- GPS is included as standard on all of our systems which provide vehicle location and speed data that synchronizes alongside the video footage along with audio. For your peace of mind all our MDVR’s are supplied with a two year warranty for your peace of mind.
Other optional features available include
- Built in 3G/4G/5G for live remote viewing and management direct from your mobile phone, tablet or PC
- Built in Wi-Fi for remote download
- Supports IP cameras for full high definition recording
- Record alarm triggers such as vehicle doors opening / closing, braking and indicating (to mention a few!). Recording additional information such as this can prove vital
- Built in shock sensor
- Revolutionary anti vibration technology which allows for 360° installation
- 4 channels AHD 720P/1080P video / analogue standard 4 audio input video input, providing 720P/1080P million HD video effect; 1 audio and video output, 1 VGA output;
- 8 – 36V wide voltage design
- Supporting intelligent power identification built in super capacitor. If power off, it can supply power for15 seconds by itself, which can help avoid data loss, and the maximum withstand is 200V pressure.
- Supporting automatic shutdown when it is in low power.
- Support intelligent power management it can be low to 3mA when the cam flameout.
- Supporting 4 channels 720P/1080P HD real-time local video
- Supporting dual SD card storage, SD card maximum to 512G
- Supporting self recovery of mobile disk emergency system
- Can be built in 3G/4G/5G module (optional), supporting 4G LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA;
- Supporting reverse image technology, and free configuration
Choosing the right MDVR for you
How do you know which MDVR to use? Here at Vehicle Security Solutions we can advise you what system to use based on your needs and vehicle type. Whether it’s a typical 8 camera set up for your Bus or Coach or just a one camera solution for your car, we have a host of solutions to cater for your needs.
Our Mobile Digital Video Recorders range from 4 channels up to 8 channels and have GPS location antennas as standard. This function allows you to see where your vehicle has been on a map when reviewing video footage.
Our MDVRs also have a range of recording capacities. From SD card systems to hard drive systems, we really have the right solution for you.
All of our Mobile Digital Video Recorders have optional extras such as 4G real time location and viewing. This allows you view live footage of your vehicle as well as its location. Other features include the supporting of reverse image technology and free configuration.
Mobile Digital Video Recorders Main Features
Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection |
2TB HDD / SSD ,protect DVR from shock & Dust damage; |
Exclusive File System protect data completeness; |
ACC Delay off,can set 3- 255 mins to work; |
Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s. |
Support GPS/GLONASS,3G/4G/5G Module Optional,WIFI extend; |
Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote control platform; |
8CH Alarm inputs(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm; |
High level aviation interface,easily installation and better shockproof, more stable;. |
Easily Smart GUI Interface, saving time in device setting; |
Mobile Digital Video Recorders Main Specifications
Item | Description | |
OS | Linux | |
Graphics Operation Interface | System parameters can be set through external display and remote controller | |
Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | |
Video and Preview | Video Input, Output | 8-channel video input, 1channel video output; 1.0Vp-p, 75Ω |
OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | |
Video Compression Format | Compression coding. Applying Hisilicon hi-performance processor. | |
Dual-Stream | Supported | |
Preview Function | Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images | |
Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | |
Resolution | AHD 1080P/ 720P, D1, CIF 4channel | |
Quality | Grade 1 to grade 5 for selection (descending) | |
Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection 720P: 2048Kbps~6144Kbps |
|
Audio | Audio Input, Output | 8-channel input, 1-channel output |
Compression Format | G.726 coding | |
Recording | Storage Medium | Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology; |
File Format/ System | Special file system | |
Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
Video Search | Searching by time, type, storage device and other conditions | |
Video Playback | Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files | |
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | ||
Alarm | Alarm Input/ Output | 8-channel on/off signal alarm input, 1-channel on/off signal alarm output |
Alarm Recording | Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min | |
Storage Space Alarm | Supporting settings for alarm of storage space | |
Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | |
Communication Ports | RS485,RS232, RJ45 10M/100M self-adaptable network interface | |
Wireless Transmission (Optional) | Supporting Wi-Fi; | |
GPS (Optional) | Supporting external GPS | |
PTZ Control | Supporting PTZ control realized by local; | |
Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | |
G-Sensor | Embedded | |
System Upgrading | Supporting SD card, hard drive upgrading and remote upgrading | |
Power Supply and Power Consumption | Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
Input Voltage | DC:+8V ~ +36V | |
Output Voltage | +12V@5*0.5A; | |
Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | |
Power Consumption | <10W in normal operation; <0.5W in standby mode | |
Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
Humidity | 10% to 95% | |
Dimensions | 160(W) x62(H) x200(D) mm. | |
Weight | Net: 2200g, Gross: 3500g |
FQA
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Mobile DVR/Mobile NVR system for Bus/Truck/Car/Taxi, Car Cameras, IP cameras, Car Monitor and CCTV accessories
3. why should you buy from us not from other suppliers?
Focus on development and manufacture of mobile DVR and car cameras for more than 10 years, have 30,000 systems installed all over the world. We welcome customized requirements on software and firmware
4. what services can we provide?
Timely and Professional service
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,EUR,GBP;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;

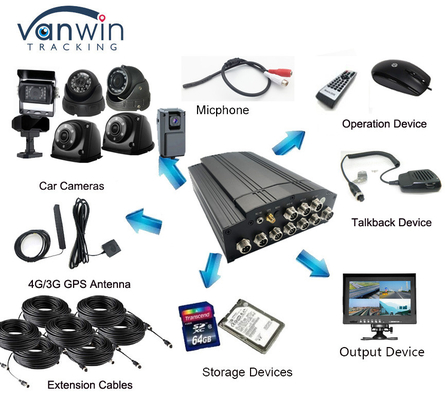

Mobile DVR Camera Systems working diagram
