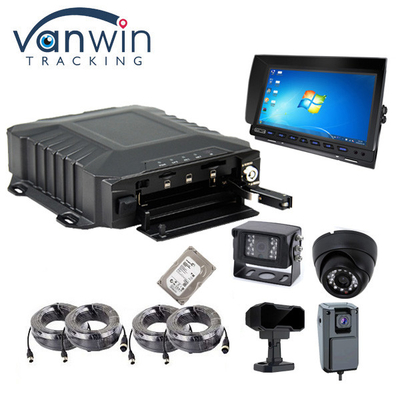

Functional 4 Channel Mobile DVR with Dashcam 4G GPS WIFI for Taxi, Bus

Functional 4 Channel Mobile DVR with Dashcam 4G GPS WIFI for Taxi, Bus

Szczegóły Produktu:

Miejsce pochodzenia: Shenzhen, Chiny
Nazwa handlowa: Vanwin Tracking
Orzecznictwo: CE/FCC/RoHS
Numer modelu: VW9204HD

Zapłata:

Minimalne zamówienie: 1pc
Cena: negotiated
Szczegóły pakowania: Domyślnie neutralne opakowanie kartonowe. Dostosuj pakiet jest dostępny, jeśli zamówienie osiągnie 3
Czas dostawy: 2-3 dni na próbki, 15-30 dni na duże zamówienia
Zasady płatności: T/T lub Western Union lub PayPal
Możliwość Supply: 5000 sztuk miesięcznie
Najlepsza cena Kontakt

Szczegóły informacji

Rodzaj: Rejestrator mobilny 4CH do ciężarówki autobusowej Rozstrzygnięcie: 4 kanały 720P (1280x720), 960p, 1080P
Przechowywanie: Dysk twardy o pojemności 2 TB + 1 * karta SD Kamera HD: Analogowe/720P/960P/1080P/IP
Format wideo: H.265 Pobieranie Wi-Fi: Wsparcie
Czujnik "G: Osadzony RS232/RS485: Wsparcie
Alarm: 6-kanałowe wejścia alarmowe, 2-kanałowe wyjście alarmowe Język: Można dostosować język angielski/chiński/inny
Wsparcie oprogramowania: klient dla komputera PC i telefonu komórkowego, serwer, oprogramowanie do odtwarzania Zastosowanie: Autobus, ciężarówka, taksówka, kabina, benzyna, koparka, floty ciężarówek górniczych

opis produktu

Functional 4 Channel Mobile DVR with Dashcam 4G GPS WIFI for Taxi, Bus

Choosing the right MDVR for you

How do you know which MDVR to use? Here at Vehicle Security Solutions we can advise you what system to use based on your needs and vehicle type. Whether it’s a typical 8 camera set up for your Bus or Coach or just a one camera solution for your car, we have a host of solutions to cater for your needs.

Our Mobile Digital Video Recorders range from 4 channels up to 8 channels and have GPS location antennas as standard. This function allows you to see where your vehicle has been on a map when reviewing video footage.

Our MDVRs also have a range of recording capacities. From SD card systems to hard drive systems, we really have the right solution for you.

All of our Mobile Digital Video Recorders have optional extras such as 4G real time location and viewing. This allows you view live footage of your vehicle as well as its location. Other features include the supporting of reverse image technology and free configuration.



Main Specifications

Model
VW9204HD
OS
Linux3.18
Operating
Cell phone APP, PC client, Remote controller
Functions Summary
Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition.








Video and Preview
Video Input, Output,Signal standard
AHD input:4ch 1080p/30fps,4ch 720p/30fps,4ch D1/30fps. IPC input:1ch default, externally expandable 1-4ch. Output: 1ch CVBS
default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional
OSD
Character superposition function, information superposition of time and date, device ID and GPS, alarm,etc.
Video Compression Format
Compression coding. Applying H264/H.265 hi-performance processor.
Image quality
Code stream, frame rate optional
Preview
1/4/6/8/9 channel preview
Resolution
AHD: 1080P:30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M
D1:30fps/512K/1M/2M
IPC: 1080P: 30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M
Audio
Audio Input, Output
4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ
Compression Format
G.711A, G.726,G711U





Recording
Storage Medium
Supporting one 2.5” SATA hard drive and one SD card
Video Strategies
Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Alarm pre-recording
0-60min
Alarm recording delay
0-30min
Playback channel
Support local 1/4/6/8 channel playback
Browse mode
Time, channel, event.



3G Client Monitoring Platform CMSV6



Functional 4 Channel Mobile DVR with Dashcam 4G GPS WIFI for Taxi, Bus 0

FQA

1. Do you provide the free CMS?

Yes, is free of charge. We will provide you the authorized code after you buy our equipment.



2. What is the minimum requirement to run this software?

CPU 2.5G four core; Memory 8GB; HDD 1TB;



3. Which OS can run this software?

server2002 / server2008 / Windows xp / Windows 7 / Windows 10, both 32bit and 64bit.



4. After we build our own server, can the IP of units be changed remotely?

Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.



Products Details

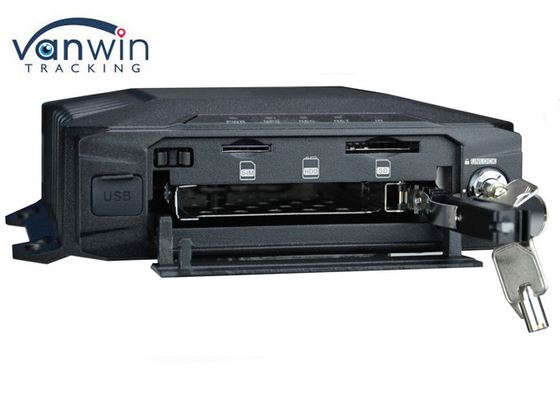

Functional 4 Channel Mobile DVR with Dashcam 4G GPS WIFI for Taxi, Bus 1

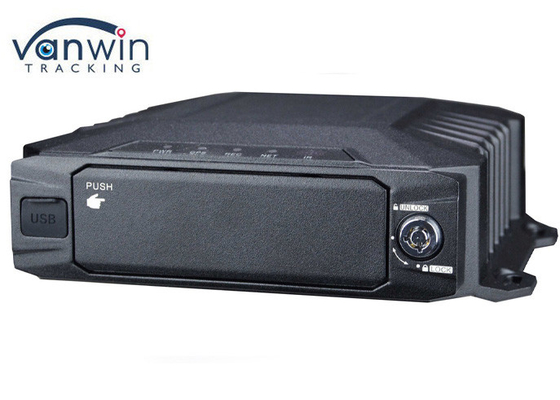

Functional 4 Channel Mobile DVR with Dashcam 4G GPS WIFI for Taxi, Bus 2



Monitoring your vehicles has never been quite so easy.

  • It is packed with features, see below some of the capabilities.
  • The Mobile DVR helps you monitor your vehicles with ease with recordings on 4 channels. Recording on 4 Channels.
  • Get the recording from up to 4 HD cameras.
  • Support for (optional) SD card, HDD/SSD up to 2TB.
  • Crystal clear footage day or night for hours on end without needing to overlap old video.
  • Snapshot & Video Recording – Get alert of detected event.
  • Multiple Alerts for Speed, turns, breaking, reversing, doors opening & closing and GPS.
  • Tracking with high quality positioning. Supports local and remote updating.
