1080P Bus Passenger Counting MDVR Camera, 3D Binocular Bus People Counter, GPS Mobile DVR for Passenger Flow & Safety Monitoring
Szczegóły Produktu:
| Miejsce pochodzenia: | Shenzhen, Chiny |
| Nazwa handlowa: | Vanwin Tracking |
| Orzecznictwo: | CE/FCC/RoHS |
| Numer modelu: | VW9028C-AI |
Zapłata:
| Minimalne zamówienie: | 1 szt |
|---|---|
| Cena: | negotiated |
| Szczegóły pakowania: | Domyślnie neutralne opakowanie kartonowe. Pakiet personalizacji jest dostępny, jeśli zamówienie osią |
| Czas dostawy: | 2-3 dni dla próbek, 15-30 dni dla dużych zamówień |
| Zasady płatności: | T/t lub Zachodnia Unia lub PayPal |
| Możliwość Supply: | 5000 pCS miesięcznie |
|
Szczegóły informacji |
|||
| Typ: | Kamera MDVR do liczenia pasażerów autobusu 1080P w autobusie szkolnym, ciężarówce | Aplikacja: | Autobus, ciężarówka, taksówka, kabina, benzyna, koparka, floty ciężarówek górniczych |
|---|---|---|---|
| Alarm: | 6-kanałowe wejścia alarmowe, 2-kanałowe wyjście alarmowe | Składowanie: | Dysk twardy o pojemności 1/2 TB + 1 * karta SD |
| Rezolucja: | 8 kanałów 720P (1280x720), 960p, 1080P | Kamera: | CVBS/720P/960P/1080P/IP |
| Zasilanie: | 9-36V DC | Pobieranie Wi-Fi: | wsparcie |
| Format wideo: | H.265/H264 | Gwarancja: | 18 miesięcy |
| Funkcja AI: | ADAS/DSM/BSD Opcjonalnie | Port szeregowy: | Obsługa 2 RS232, 1 RS485 |
| Język: | Można dostosować język angielski/chiński/inny | Obsługa oprogramowania: | klient dla komputera PC i telefonu komórkowego, serwer, oprogramowanie do odtwarzania |
| Podkreślić: | 1080P Bus Passenger Counting MDVR Camera,3D Binocular Bus People Counter |
||
opis produktu

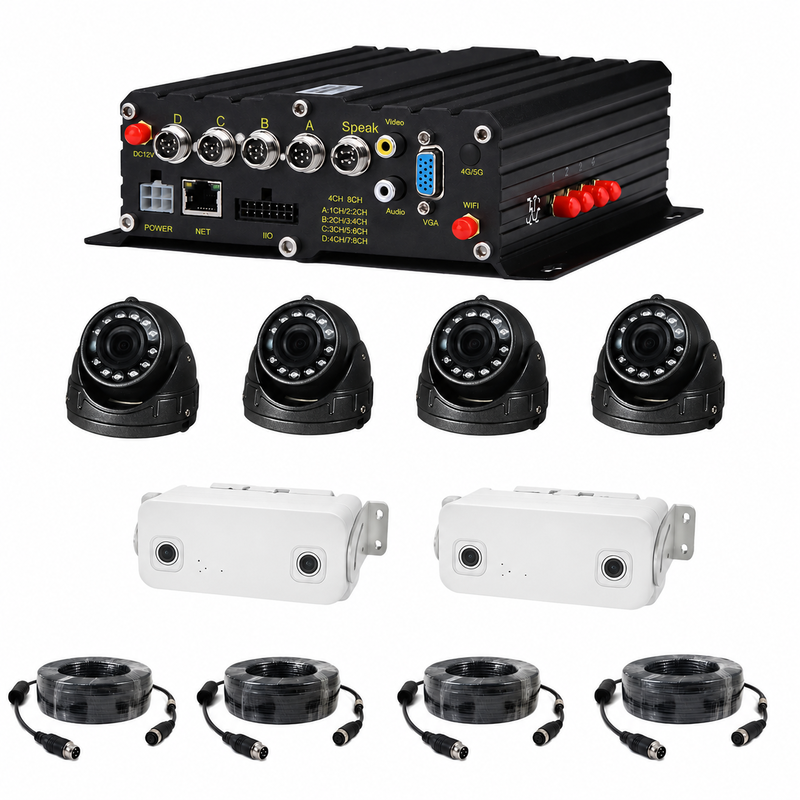

8CH 1080P HDD car Mobile GPS DVR Integrated AI functions Bus People Counter MDVR Vehicles CCTV Car black box
System Selling Points:
- MDVR + AI All-In-One. Monitoring and Enhance Driving Safety at the same time.
- Strongly Support ADAS+DSM+Bus People Counter. Further support BSD, 360 degree and ect.
- 8 channel full HD (1080P) video recording, H.265.
- World first AI MDVR, 1.2T computing NPU ensures high accuracy and stable performance.
Main Specifications
| project | parameter specification | |
| Audio and Video Inputs | video input | AHD:8ch 1080/25fps IPC:Scalable 1-8ch |
| audio input | 4ch audio iuput | |
| Audio and Video outputs | video output | Default 1-way CVBS output (VGA output optional) |
| speech output | 1ch audio output | |
| Audio and video parameter coding | video coding | H.264 Main Profile/H.265 |
| · Resolution | 1080P/720P/D1 optional | |
| audio coding | Default G.726,G.711A optional | |
| storage space | HDD | 1 2.5-inch optional: SSD/HDD hard disk |
| SD | Support 1 SD card | |
| wireless network | 4G | Supports 1 SIM card, optional: all major communication modules in the world |
| WIFI | 2.4/5.8G optional | |
| locate mode | BD/GPS | Support for mixed positioning, speed detection, time synchronization |
| interface | USB | USB2.0 interface, support export data, external engineering treasure |
| serial port | Support 2 RS232, 1 RS485, can be connected with external sensor | |
| I/O | 4 level inputs, 2 analog inputs, 2 alarm outputs | |
| network interface | Support external IPC, support hybrid NVR function | |
| · Intercom | 1 special intercom handheld mark interface | |
| Other | operator schema | remote control,APP,WEB |
| · Gravity sensor | Built-in G-Sensor | |
| Configurable AI algorithms | Face recognition,eople Counting | |
Products Details
ADAS warning camera
- Warning of lane deviation without turn signal
- Excessive warning of car in front of you
- Warning of impending collision
- voice broadcast reminder,Provide real-time voice
- Adjustable Angle, high temperature resistance
DSM prevents fatigue driving camera
- Fatigue driving warning
- Abnormal sightwarnings
- Call warning
- Imagecover warning
- Driver change warning
- Warning of camera failure
- Supporte wide dynamic HDR response
- 360°adjustable Angle, high temperature resistance
Specifications for DSM Camera
| Item | Description | |
| Modelvw | VW-DMSM-22 | |
| Parameter of Lens | Image sensor | 1080P CMOS IMAGE SENSOR |
| Optical format | 1/2.7 inch | |
| pixel | 1936H*1096V(1080P) | |
| Pixel size | 3.0*3.0um | |
| output format | 10-bit RGB Raw Data | |
| Image output video | Analog HD AHD signal | |
| Wide dynamic | 95DB | |
| lens structure | 4E | |
| aperture | 2.0 | |
| Lens resolution | 5 million pixels | |
| Angle | Horizontal H: 85° | |
| Vertical V: 45° | ||
| IR filter | 940 IR | |
| Lamp beads | wavelength | 940nm |
| Number | 2 | |
| work environment | voltage | 12V |
| current | 230 mA±5 | |
| temperature | -20 ～ 70℃ | |
| Storage temperature | -30 ～ 80℃ | |
| Working humidity | 45%-80%RH | |
| Store humidity | 30%-90%RH | |
| atmospheric pressure | 860MBar ～ 1060Mbar | |
| Size | interface | 4PIN MicroTCA |
| Line length | 55cm | |
| weight | 175g | |
| Structure size | 77(L)*55(W)*89(H)mm | |
4G Client Monitoring Platform CMSV6
FQA
1. Do you provide the free CMS?
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
2. What is the minimum requirement to run this software?
CPU 2.5G four core; Memory 8GB; HDD 1TB;
3. After we build our own server, can the IP of units be changed remotely?
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
